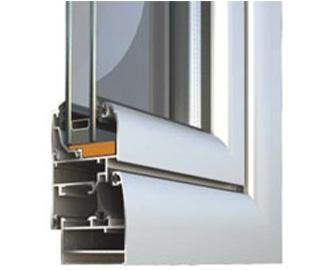

ightweight system for opening and tilt frames Alumil M940
M940 is the most lightweight system for opening and/or tilt frames.



  • Basic depth of system 37 mm
  • Water and air tightness is achieved with three levels of EPDM gaskets
  • Great diversity of designs regarding the windows and doors’ appearance
  • Cover all types of opening frames
  • Combines with M900 sliding system
  • Can be used in all possible construction applications
  • Single glazing with thickness from 10 mm up to 26mm

PROFILE CHARACTERISTICS
•    Frame depth: 37 mm
•    Sash depth: 44 mm
•    Minimum visible width: 81,7 mm
•    Minimum visible width (Τ-profile): 67,8 mm
•    Sash mechanism weight limit: 80 Kg
•    Glass thickness: up to 16 mm
•    Cross section thickness: 1,1 - 1,4

SYSTEM CHARACTERISTICS
•    Type of system: Uninsulated
•    Uf: 7 W/m²K
•    Exterior aesthetics: Flat, Curved
•    Glazing method: Aluseal system
•    Type of thermal insulation: -
•    Mechanism: European Groove

Typologies

•    Fixed
•    Tilt & Turn
•    Single leaf entrance door
•    Single leaf opening shutter
•    Two leaf opening shutter
•    Three leaf opening shutter
•    Four leaf opening shutter

Certifications

Single leaf aluminum- wood door / Tilt & Turn
Air permeability - Watertightness - Resistance to wind load
EKANAL

Double Sash aluminum-wood door / Tilt & Turn
Air permeability - Watertightness - Resistance to wind load
EKANAL
