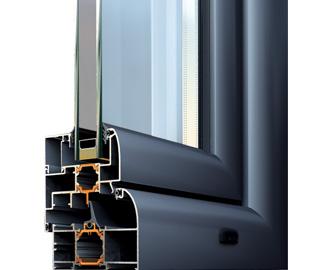

Μ20000 is tilt and turn opening system with thermal break which exclusively combines with stainless steel (PVC groove) hardware.
This system offers satisfying thermal insulation and enhanced security level.
• Basic depth of system 62.5mm
• Stainless steel mechanism of 16mm with security locking bolts (mushroom shape) can be easily installed with valuable time savings
• Special reinforcement in the frame profiles for screwing and supporting the hinges
• Appropriate distance of 4mm between the sash and the frame for continuous application of sealing gaskets even behind the hinges
• Glass reinforced polyamide (24 mm in the frames and 20 mm in the sashes) which offers increased thermal insulation (Uf =2,7-3,0 W/m²K)
• Glass thickness up to 44 mm and sash weight up to 130 kg
PROFILE CHARACTERISTICS
• Frame depth: 62,5 mm
• Sash depth: 70,5 mm
• Minimum visible width: 106 mm
• Minimum visible width (Τ-profile): 86 mm
• Sash mechanism weight limit: 130 Kg
• Glass thickness: up to 46 mm
• Cross section thickness: 1,4 - 1,6
SYSTEM CHARACTERISTICS
• Type of system: Insulated
• Uf: 2,7 – 3,0 W/m²K
• Exterior aesthetics: Flat, Curved, Classic
• Glazing method: Aluseal system
• Type of thermal insulation: 24 mm polyamide
• Mechanism: Steel mechanism 16mm
Typologies
• Fixed,
• Tilt & Turn
• Single leave entrance door,
• Projected outwards,
• Folding doors,
• VW
Certifications
Thermal Insulation
IFT Rosenheim
Single leaf aluminum- wood door / Tilt & Turn
Air permeability - Watertightness - Resistance to wind load
EKANAL
Double Sash aluminum-wood door / Tilt & Turn
Air permeability - Watertightness - Resistance to wind load
EKANAL

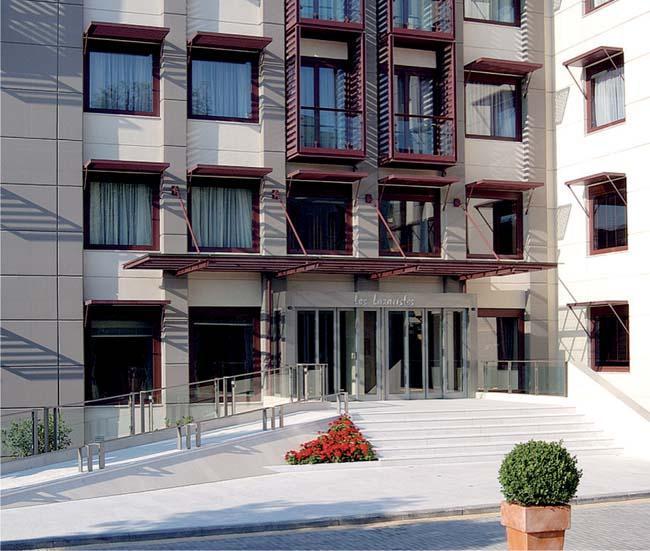

Galleria applicazioni
 |
||
