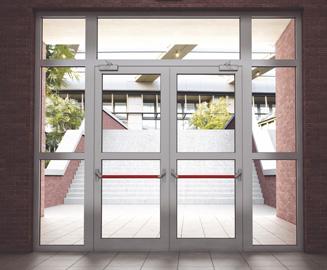

M15000RS is a hinged system without thermal break that prevents smoke from penetrating in particular protected areas.
Used in office buildings or large industrial areas where there is a need of escape in case of fire. For this reason the doors are certified as to their function as panic doors.
This highly efficient system has the following characteristics:
• Ideal for smoke proof and panic doors
• The system is recommended for public/industrial buildings, offices and hotels especially for secure evacuation in case of fire
• All potential typologies of entrances as fixed, single or double sash doors, in combination with or without ventilation opening
• Robust constructions with impressive dimensions can be created (certified at Ift Rosenheim: single and double sash entrances in dimensions 1500Χ2300 and 2200Χ2400)
PROFILES CHARACTERISTICS
• Frame depth: 50 mm
• Sash depth: 50 mm
• Minimum visible width: 156,7 mm
• Minimum visible width (Τ-profile): 90 mm
• Sash mechanism weight limit: 150 Kg
• Glass thickness: 24 - 40 mm
• Cross section thickness: 1,6 - 2,5
SYSTEM CHARACTERISTICS
• Type of system: Uninsulated
• Uf: 7 W/m²K
• Exterior aesthetics: Flat
• Glazing method: Glazing Bead
• Type of thermal insulation: 34 polyamide
• Mechanism: GU
• Typologies: Endrance Panic Doors, Fixed Parts
Certifications
Air permeability – Watertightness – Resistance to wind load – Functional check
IFT Rosenheim
Anti Bulgar protection WKIII
IFT Rosenheim
Panic doors
IFT Rosenheim
Smoke doors (single sash)
IFT Rosenheim
Smoke doors (double sash)
IFT Rosenheim
